tempering error calculator

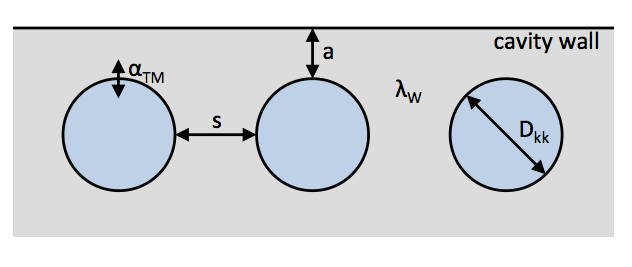

This tool calculates the error created by the specified cooling channel layout :
J = 2.4 • (αTM • Dkk / λW)^0.22 • ((s/a)^(2.8 • ln(s/a)))
i
distance of cooling channels s : [mm]
cooling channel diameter DKK : [mm]
distance of cooling channels to wall a : [mm]
heat transfer coefficient αTM : [W/mK]
thermal conductivity of mould λW : [W/mK]
cooling channel diameter DKK : [mm]
distance of cooling channels to wall a : [mm]
heat transfer coefficient αTM : [W/mK]
thermal conductivity of mould λW : [W/mK]
